Epoxy cast resin post insulators for indoor MV switchgear.

Name: Epoxy cast resin post insulator, 12 / 24 kV
Brand: P&C

Solid epoxy resin insulators that replace porcelain in medium-voltage switchgear — busbar supports in switchgear, ring-main units, cable boxes and busbar systems. Cast as a single homogeneous body with embedded threaded inserts: high mechanical strength and a hydrophobic, non-porous surface that does not absorb moisture. Two ratings, each with or without capacitive unit, all type-tested at the Ministry of Electricity's Extra High Voltage Research Laboratory.

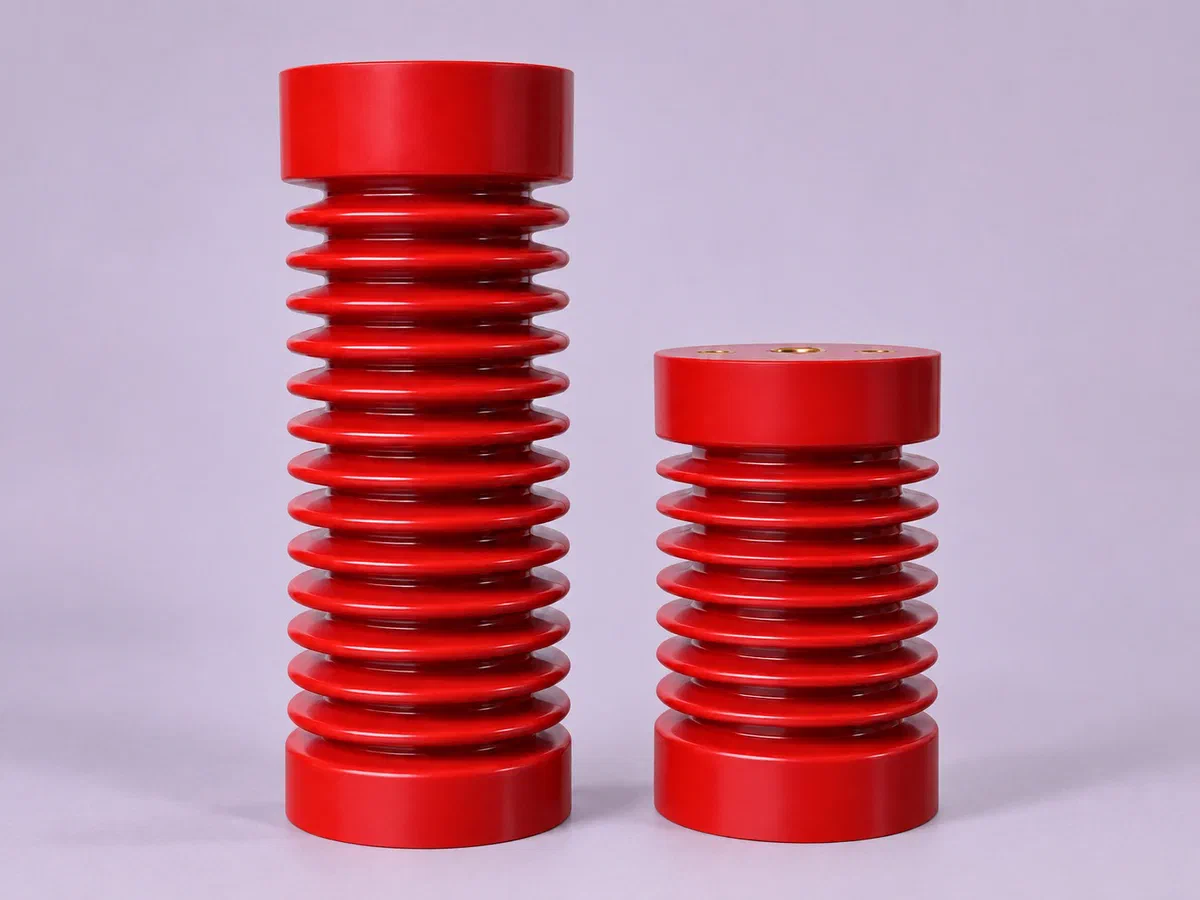

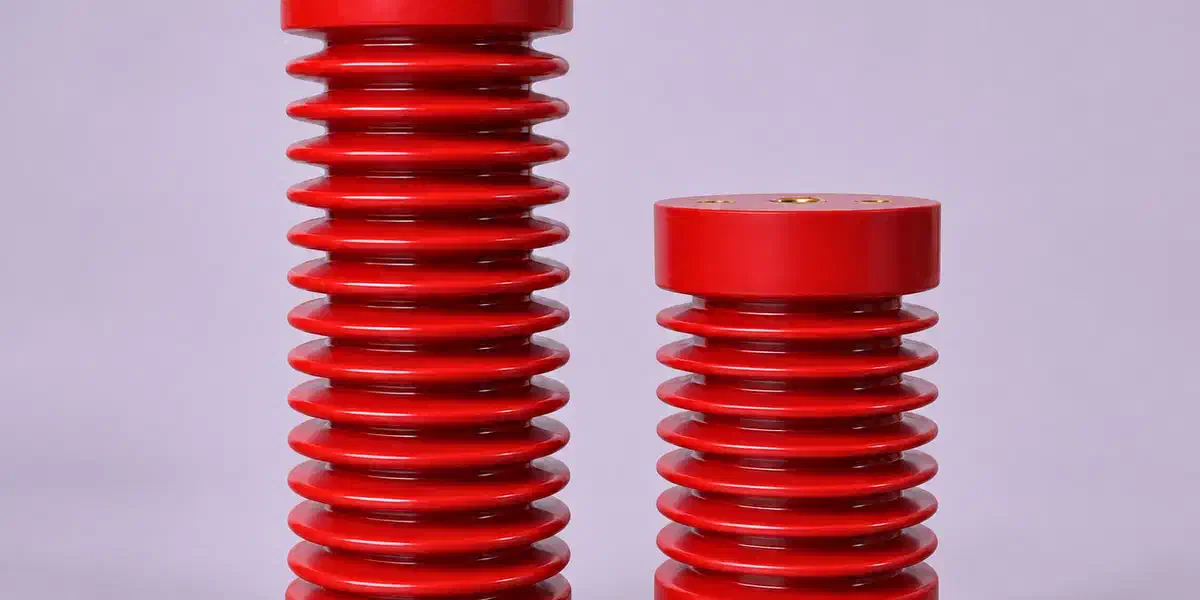

Epoxy Cast Resin Post Insulators — 12 / 24 kV

Range

12 kV and 24 kV, with or without capacitive unit.

Cylindrical solid insulators with a ribbed profile that sets the creepage distance. Main dimensions to IEC 60273; creepage dimensioned per IEC 60815 for indoor pollution class. Embedded brass inserts with internal thread, flush with the surface; the auxiliary inserts are not electrically connected to the main insert internally. Service temperature −25 °C to +115 °C; tropical versions with special fixing parts and non-standard insert threads on request. Signal-red colour for visual identification in the panel.

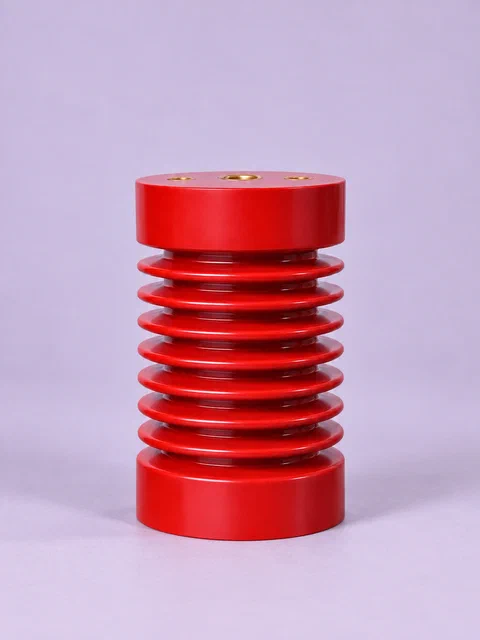

12 kV post insulator

INS-12KV-RED-001 (factory type PCI 12) · INS-12KV-RED-CAP-002 (PCI 12C, one capacitive unit)

Indoor post insulator for 12 kV switchgear. Supplied plain, or with one embedded capacitive divider brought out to a side socket for a voltage-presence indicator — no separate VT needed.

Dimensions and mechanical

Rated voltage U_r: 12 kV
Overall height H: 130 mm ± 2 mm
Diameter Ø: 80 mm ± 3 mm
Ribs: 7
Creepage distance: 240 mm
Weight: 1000 g
Cantilever strength: > 10 kN
Fixing inserts — plain (-001): Top M16×30 main + M10×16 auxiliary · base M20×60
Fixing inserts — capacitive (-CAP-002): Top M16×26 main + M10×14 auxiliary · base M20×26

Electrical (type-test values)

Power-frequency withstand: 28 kV
Lightning-impulse withstand: 38 kV
Partial discharge at rated voltage: ≤ 5 pC (at 13.2 kV)
Capacitive unit: None (-001) · 1 × divider, side socket (-CAP-002)
Material · colour: Epoxy cast resin · signal red
Origin: Made in Egypt

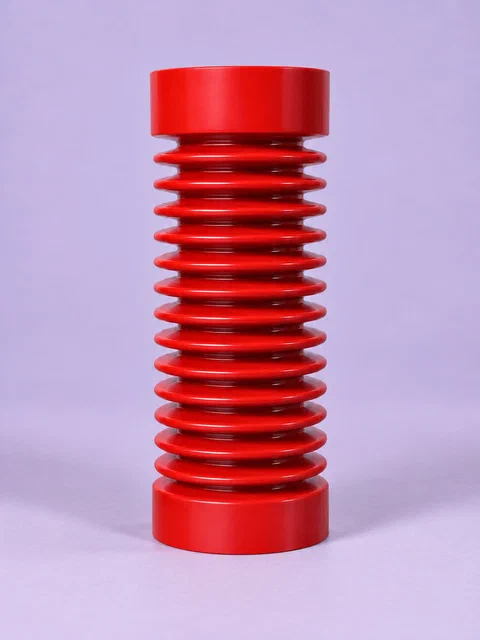

24 kV post insulator

INS-24KV-RED-001 (factory type PCI 24) · INS-24KV-RED-CAP-002 (PCI 24C, two capacitive units)

Indoor post insulator for 24 kV switchgear. Supplied plain, or with two capacitive dividers in series brought out to a side socket for a voltage-presence indicator.

Dimensions and mechanical

Rated voltage U_r: 24 kV
Overall height H: 210 mm ± 2 mm
Diameter Ø: 80 mm ± 3 mm
Ribs: 13
Creepage distance: 440 mm
Weight: 1720 g
Cantilever strength: > 10 kN
Fixing inserts — plain (-001): Top M16×30 main + M10×16 auxiliary · base M20×60
Fixing inserts — capacitive (-CAP-002): Top M16×26 main + M10×14 auxiliary · base M20×26

Electrical (type-test values)

Power-frequency withstand: 50 kV
Lightning-impulse withstand: 125 kV
Partial discharge at rated voltage: ≤ 5 pC (at 26.4 kV)
Capacitive unit: None (-001) · 2 × divider, side socket (-CAP-002)
Material · colour: Epoxy cast resin · signal red
Origin: Made in Egypt

Standards, tests and certification

IEC 60660 · IEC 60273 · IEC 60815

Request the catalogue and type-test certificate

Main dimensions in accordance with IEC 60273; creepage distance per IEC 60815. Every insulator passes the IEC 60660 routine tests — visual inspection, testing of the conductive connection between inserts, power-frequency withstand voltage (dry) and partial-discharge measurement — and samples are tested for minimum failing load in bending. Lightning-impulse withstand and extended bending tests are available on request. Order by ordering code, stating quantity, delivery date and, for capacitive versions, the voltage-indicator type to be connected.

Dimensions: IEC 60273
Creepage basis: IEC 60815
Routine tests: IEC 60660 — visual · conductive connection between inserts · power-frequency withstand (dry) · partial discharge
Sample test: Minimum failing load in bending
On request: Lightning-impulse withstand · extended bending test
Type-test laboratory: Extra High Voltage Research Laboratory (EHVRL), Ministry of Electricity and Renewable Energy, Egypt
Certificates: IEC-60660-MAN-2024-12/24-025 · EHVRL-MOE-12/24
Quality system: ISO 9001:2015
Catalogue: PC-CAT-INS-025, Rev. 0001, September 2026

Goes with

Also used in P&C fuse bases.

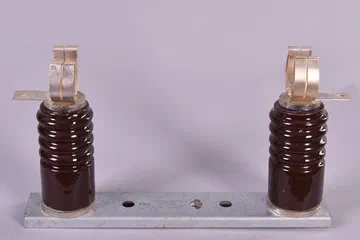

P&C MV fuse bases are built on these epoxy insulators or on P&C glazed porcelain insulators.
